MINI DRYFOG SYSTEM

The most efficient way to disinfect

MINI DRY FOG SYSTEM

THE MOST EFFECTIVE & CONVENIENT WAY TO DISINFECTION

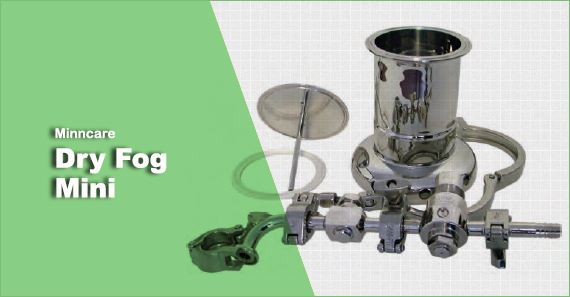

The Mini Dry Fog system provides an easy-to-use, high technology solution for confined-space fogging. The combination of our highly effective Minncare Cold Sterilant chemical and our state-of-the-art Dry Fog Delivery System enables users to rapidly and safely deliver Minncare vapour to even the most complex areas. Its sanitary and autoclavable design permit its use in the most critical areas within pharmaceutical and other industries concerned with maintaining the utmost levels of sterility. The flexibility of the Mini Dry Fog nozzle allows for rapid vapour dispersion and ensures that the entire space is exposed to dry fog.


  • Wide and effective coverage

  • Over 95% reduced disinfection cycle time

  • Greatly reduced labor

  • Fully bio-degradable sterilant registered by EPA

  • No measurable air residuals

slider-image

DISINFECTION & CONVENIENCE

EFFECTIVE COVERAGE & EASE OF USE

Mini Dry fog system delivers Minncare cold sterilant vapours of controlled and accurate droplet size ensuring penentration into normally inaccessible areas. It is portable and can be used in multiple locations. Single units can dispense upto 500ml of liquid Minncare cold sterilant solution.

FASTER & EFFECTIVE

OVER 95% REDUCED DISINFECTION TIME

Mini Dry Fog System can complete a disinfection process in 3 hours ( room size & ventilation system efficiency dependent) as compared to many hours of some conventional disinfection systems. Another big reason for the wider coverage is, the size of droplets that are ejected out of Mini Dry Fog nozzle is as tiny as 7.5µ in diameter , it bounces off surfaces and moves at greater speed as well.

BIODEGRADABLE & NON-CORROSIVE

REGISTERED WITH EPA FOR USAGE AS FOG

Mini Dry fog uses MINNCARE®, a cold sterilant registered by EPA for use as a fog, which is fully biodegradable with no measurable air residues. Minncare Cold Sterilant is a peracetic acid and hydrogen peroxide based proprietary chemistry developed by Minntech for optimized biocidal efficacy. Minncare Cold Sterilant contains only pharmaceutical quality raw materials.

ADVANTAGES & FEATURES

ultrafine droplets image filfab
Ultrafine Droplets

The difference is the droplet size.
MINNCARE® Dry fog 2S system is designed to produce ultra fine drops that average 7.5 micron in diameter which will ensure even dispersion of the Minncare solution through out the room without wetting the surfaces. These fine droplets bounce off hard surfaces and thus avoid condensation, corrosion and surface wetting associated with conventional foggers. The ultra fine droplets are lighter and do not settle down hence covering even inaccessible areas for complete disinfection.

flexible rubber tube filfab
Highly Flexible System

The MINNCARE® Dry fog 2S system is amazingly flexible with options of 1, 2, 3 or 4 nozzles available. The whole system is mounted on a trolley so that taking it from one area to other is a breeze. It can be easily disassembled due to the tri-clamp type clamping design. Since the complete system is autoclavable, cross contamination from area to area is eliminated.

clock filfab
Lower Clean-Room Downtime

The use of very small quantity of disinfectant ( just 1.5 ml/m3 of Minncare) and lack of toxic aldehyde vapors results in extremely short process times - over 95% faster than some conventional systems. This means less production downtime and lower total costs. Typically, the entire process can be completed in less than 3 hours, depending upon room size and ventilation system efficiency, compared to up to 3-5 days with some conventional systems.

biodegradable symbol filfab
Biodegradable

The MINNCARE® Dry fog 2S systems uses one of the most safe and environmentally friendly biocide, Minncare. It contains no toxic aldehyde vapours or other harmful chemicals like Chlorine, Ammonia etc. Extensive toxicity studies have shown Minncare is safe for use in Pharmaceutical manufacturing areas. Post disinfection, it breaks down into acetic acid, water and oxygen which are bio-degradable. This makes use of Minncare Dry Fog 2S system in your cleanrooms safe all the the employees.

graph arrow rising filfab
The Minncare Advantage

When you own Minncare® Dry Fog 2S Machine, you don’t just get an equipment, but all the advantages of Minncare Cold Sterilant with it. The US EPA registration, the safe and biodegradable action, the broad spectrum action, the swift action on bacteria, mycobacteria, fungus, virus, spores etc. and the ability not to allow micro organisms to develop an immunity against it. The advantages are many.

MINNCARE® Dry fog 2S system Equipment Advantage

The MINNCARE® Dry fog 2S machine provides an easy to use, high technology solution for rooms upto 1000m3 in one single process. It is robust in construction with easy maintenance and no moving parts and no electrical component.. It is made of SS 316L and hence easy to autoclave. The portable design allows users to use it in multiple locations, if needed.

headphone image filfab
The Filfab Support Advantage

The Filfab technical team on Dry Fog system is a very capable support force. They provide you with assistance right from the selection of correct model based on your area layout , technical presentation, actual equipment demonstration, preparation of URS, validation and performance qualification etc. Filfab has multiple demonstration equipments in India to enable a quick demo, if you request for, before deciding to buy.

FREQUENTLY ASKED QUESTIONS

How is MINNCARE® Dry fog 2S system different than conventional systems?

MINNCARE® Dry fog 2S system is the most advanced, yet easy to use and competitively priced cleanroom disinfection equipment. The dry delivery of the disinfectant is unique which results in minimum usage of disinfectant, wide coverage including multiple rooms in single process and hence substantial reduction in time. Single system can handle unto 1000 m3 area in single operation with multiple rooms.

How much time do I save when compared to conventional systems?

A typical clean room disinfection process with MINNCARE® Dry fog 2S system takes about 3 hours including venting. Note that this is with the ability of clubbing multipe rooms in one process upto 1000m3 total area. If you compare this with conventional foggers which requires individual room processes and with some disinfectants which takes hours to vent out, the users end up with substantial savings on time many times upto 95%.

How do I validate MINNCARE® Dry fog 2S system?

MINNCARE® Dry fog 2S system cleanroom disinfection process is validated by the microbioligical method. The major advantage with Minncare Dry Fog 2S system is that it does not require a specific microbiology method. You can use your process - be it, Plate exposure, Swabbing, or Biological Indicators. Irrespective of the methodology Dry Fog system will qualify with upto 6 log reduction of the bacterial count.

Can I see the operation in my clean room before I buy?

Yes. Filfab offers actual working demonstration of Minncare Dry Fog 2S system in your area of usage with micorbiological validation support from you. In this way you can see all the benefits before buying.

Can I use this Dry Fog technology for smaller areas like airlocks, Passboxes etc?

Yes, with Mini Dry Fog systems and adapted Dry Fog nozzle systems it is possible to use this technology for smaller areas like airlocks, passboxes, isolators, cRABS, Biohazard cabinets etc. Contact us for more details.
